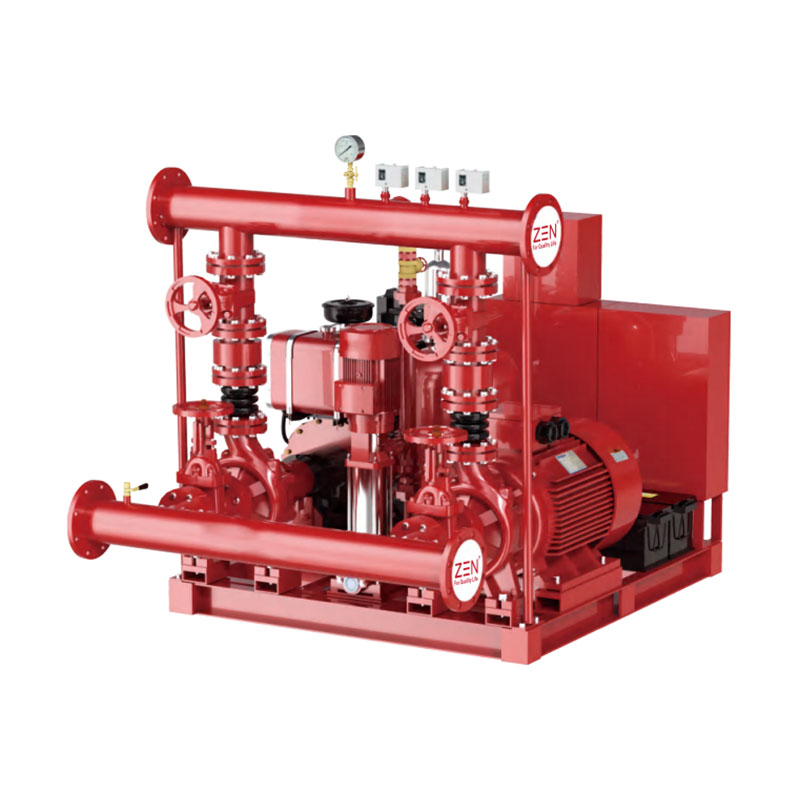

Sebagai produsen profesional, Zen ingin memberi Anda Sistem Pemadam Kebakaran ZEDJ berkualitas tinggi. Pompa kebakaran kami dirancang untuk masa operasional keseluruhan, keandalan maksimum selalu menjadi prioritas utama.
Sistem Pemadam Kebakaran ZEDJ berkualitas tinggi ditawarkan oleh pabrikan Cina ZEN Machinery. Kami memproduksi pompa kebakaran secara ketat sesuai dengan standar internasional, berkomitmen untuk menyediakan produk berkualitas tinggi kepada pelanggan di seluruh dunia. Jangan ragu untuk menghubungi kami kapan saja.
1. Komponen dipasang pada struktur rangka baja.
2. Setiap pengontrol memiliki garis pengukuran tekanannya sendiri.
3. Saluran hisap tidak boleh dilengkapi saringan.
4. Periksa katup dan katup throttle pada saluran pembuangan.
5. Sertifikasi NFPA 20 tidak memperbolehkan pengisapan negatif untuk pompa pengisapan ujung dan casing terpisah.

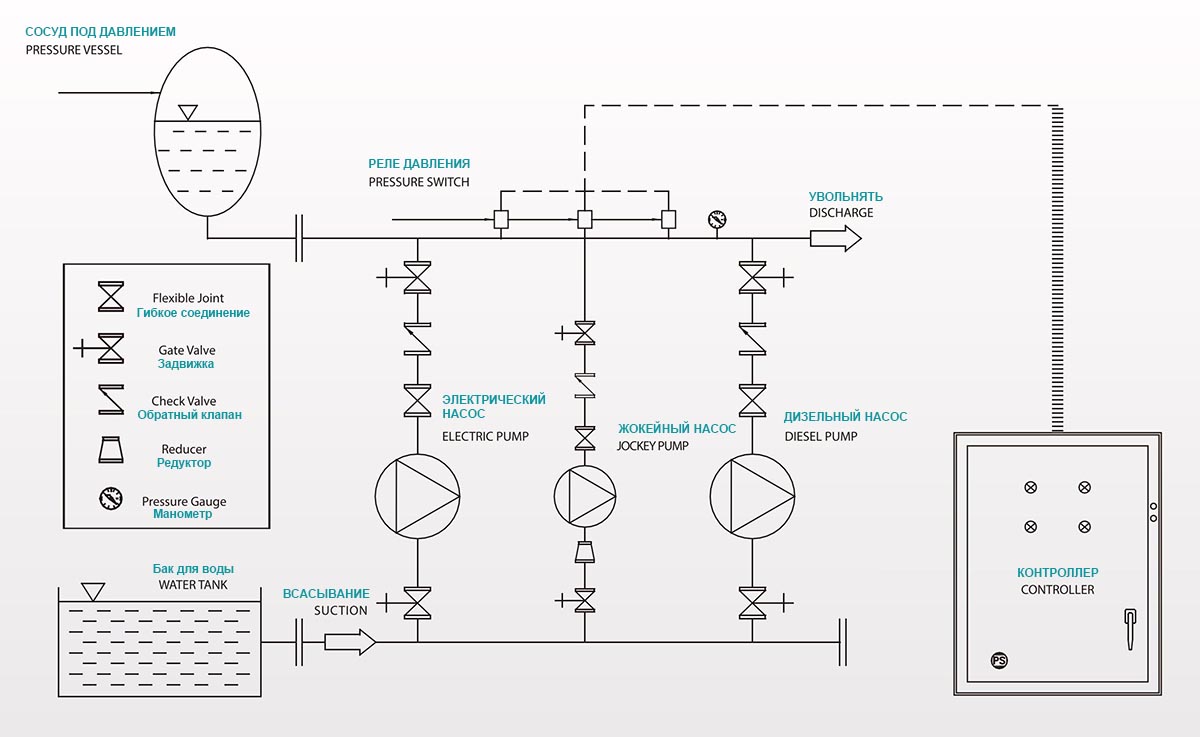

Ketika tekanan turun di bawah nilai yang ditetapkan, joki mulai berlari dengan sinyal dari sakelar tekanan dan terus berlari selama 10 menit hingga tekanan sistem mencapai nilai yang ditetapkan. Jika tekanan terus turun, pompa utama akan mulai bekerja. Jika tekanan sistem tidak dapat disuplai dan tekanan terus turun, pompa siaga akan mulai bekerja.
 |
Q | H | Listrik | solar | Joki | ||
| Pilihan 1 | pilihan 2 | Pilihan 1 | pilihan 2 | ||||
| Terhubung erat | Layanan Pelanggan | Jenis kopling | Impeler plastik | Saya menggunakan kole SS304 | |||
| GPM | Ada |
 |
 |
 |
 |
 |
|

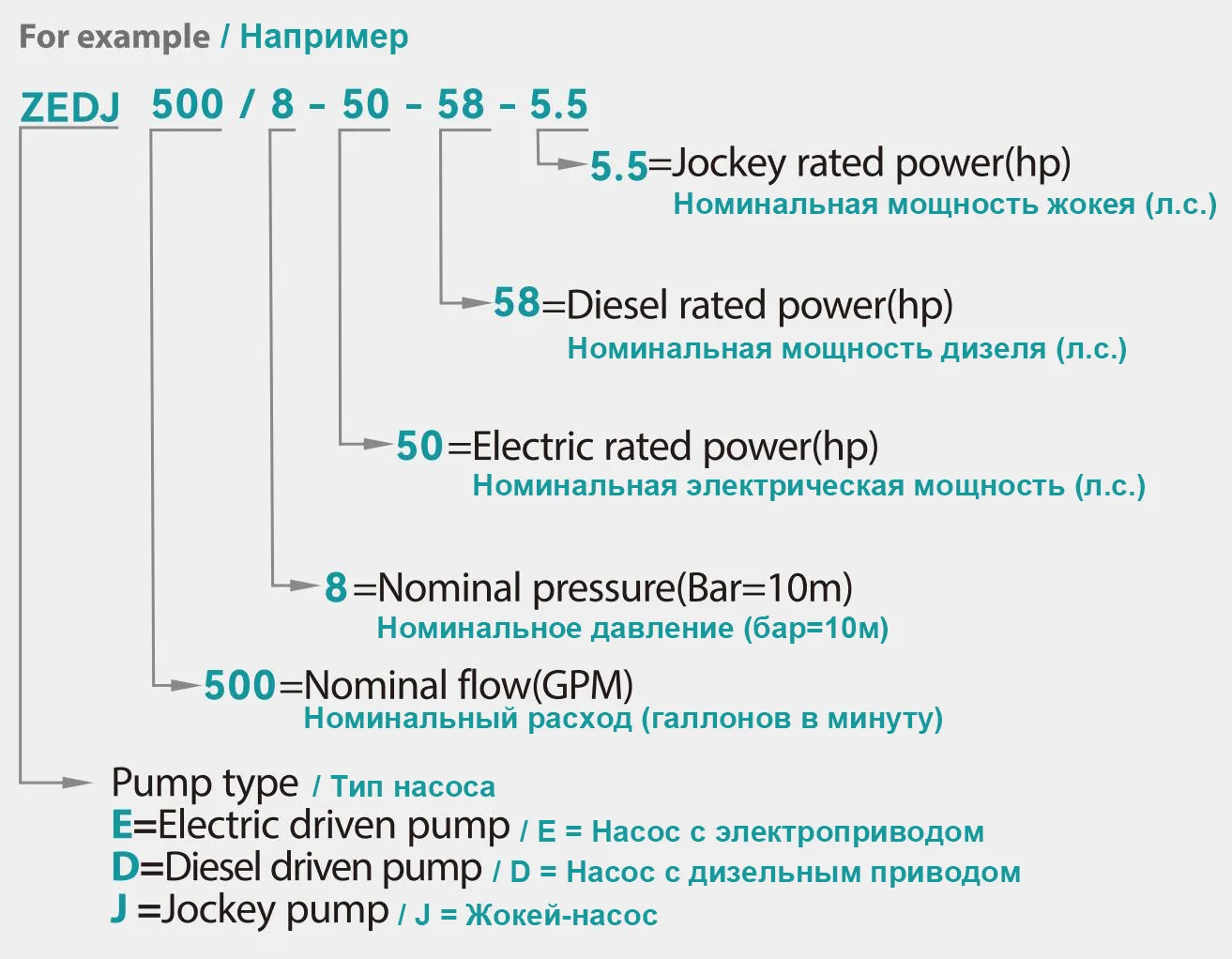

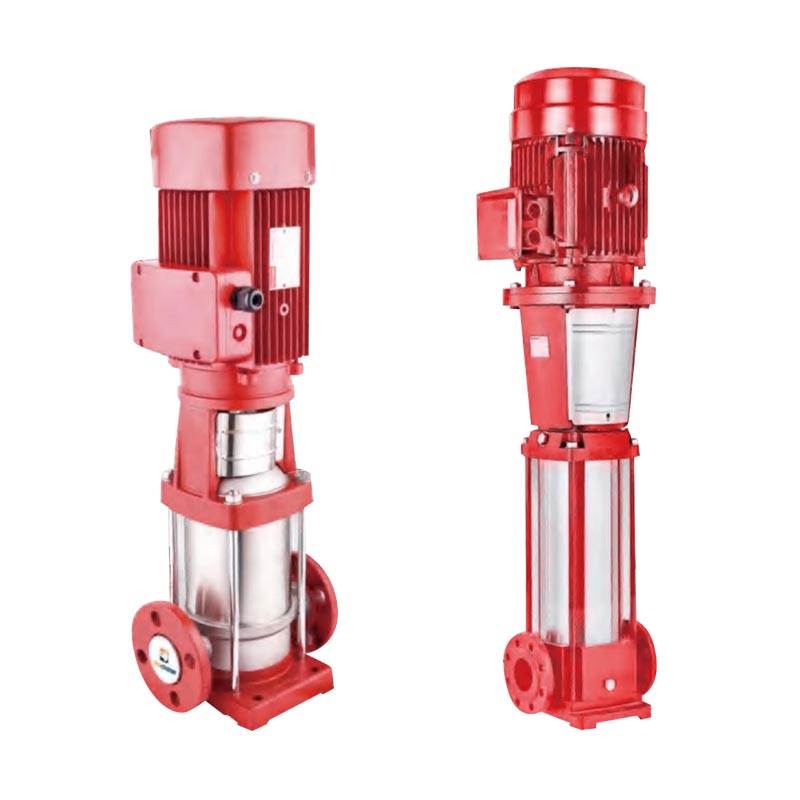

| ZEDJ 50/6-5.5-8.6-2 | 50 | 6 | ZST 32-250/557.5HP | XAD32-250/557.5HP | SD 32-250/558.6HP | SVP4-6/2HP | CDL(P)1-15/1HP |
| ZEDJ 50/7-7.5-10-2 | 50 | 7 | ZST 32-250/75 10HP | XAD32-250/75 10HP | SD 32-250/75 10HP | SVP4-6/2HP | CDL(P)1-15/1HP |
| ZEDJ 50/8-10-12-3 | 50 | 8 | ZST 32-250/11015HP | XAD32-250/110 15HP | SD 32-250/11012HP | SVP4-10/3HP | CDL(P)1-15/1HP |
| ZEDJ 50/9-10-27-3 | 50 | 9 | ZST 32-250/150 20HP | XAD32-250/150 20HP | SD 32-250/150 27HP | SVP4-10/3HP | CDL(P)1-17/1.5HP |
| ZEDJ 100/7-10-10-2 | 100 | 6-7 | ZST 32-250/75 10HP | XAD32-250/75 10HP | SD 32-250/75 10HP | SVP4-6/2HP | CDL(P)2-11/1.5HP |
| ZEDJ 100/8-15-27-3 | 100 | 8 | ZST 32-250/150 20HP | XAD32-250/150 20HP | SD 32-250/150 27HP | SVP4-10/3HP | CDL(P)2-13/2HP |
| ZEDJ 100/9-17.5-27-3 | 100 | 9 | ZST 40-250/185 25HP | XAD40-250/185 25HP | SD40-250/185 27HP | SVP4-10/3HP | CDL(P)2-13/2HP |
| ZEDJ 120/7-10-12-3 | 120 | 7 | ZST 32-250/75D 10HP | XAD32-250/75H 10HP | SD 32-250/75H 12HP | SVP4-10/3HP | CDL(P)2-13/2HP |
| ZEDJ 150/7-15-12-3 | 150 | 7 | ZST 40-250/110 15HP | XAD40-250/110 15HP | SD 40-250/110 12HP | SVP4-10/3HP | CDL(F)4-10/3HP |
| ZEDJ 200/6-20-27-3 | 200 | 6 | ZST 50-250/150 20HP | XAD50-250/150 20HP | SD 50-250/150 27HP | SVP4-10/3HP | CDL(F)4-10/3HP |
| ZEDJ 200/7-25-27-3 | 200 | 7 | ZST 50-250/185 25HP | XAD50-250/185 25HP | SD 50-250/185 27HP | SVP4-10/3HP | CDL(F)4-10/3HP |
| ZEDJ 200/8-30-32-3 | 200 | 8 | ZST 50-250/220 30HP | XAD50-250/220 30HP | SD 50-250/220 32HP | SVP4-10/3HP | CDL(P)4-12/3HP |
| ZEDJ 200/9-40-38-4 | 200 | 9 | - | XAD50-250/300 40HP | SD 50-250/300 38HP | SVP4-12/4HP | CDL(P)4-123/HP |
| ZEDJ 200/10-50-58-4 | 200 | 10 | XAD50-315/37050HP | SD 50-315/370 58HP | SVP6-8/4HP | CDL(P)4-14/4HP | |
| ZEDJ 250/7-25-27-4 | 250 | 7 | ZST 50-250/18525HP | XAD50-250/185 25HP | SD 50-250/185 27HP | SVP6-8/4HP | CDL(P)4-12/3HP |
| ZEDJ 300/6-25-27-4 | 300 | 6 | ZST 50-250/185 25HP | XAD50-250/185 25HP | SD 50-250/185 27HP | SVP6-8/4HP | CDL(P)8-6/3HP |
| ZEDJ 300/7-30-32-4 | 300 | 7 | ZST 50-250/220 30HP | XAD50-250/220 30HP | SD 50-250/220 32HP | SVP6-8/4HP | CDL(F)8-8/4HP |
| ZEDJ 300/8-40-38-4 | 300 | 8 | - | XAD50-250/300 40HP | SD 50-250/300 38HP | SVP8-8/4HP | CDL(F)8-8/4HP |
| ZEDJ 300/10-50-58-5.5 | 300 | 9-10 | - | XAD50-315/370 50HP | SD 50-315/370 58HP | SVP8-10/5.5HP | CDL(P)8-12/5.5HP |
| ZEDJ 350/7-30-32-4 | 350 | 7 | ZST 50-250/220 30HP | XAD50-250/220 30HP | SD 50-250/220 32HP | SVP8-8/4HP | CDL(F)8-8/4HP |
| ZEDJ 400/6-30-32-4 | 400 | 6 | ZST 65-250/220 30HP | XAD65-250/220 30HP | SD 65-250/220 32HP | SVP8-8/4HP | CDL(F)8-8/4HP |
| ZEDJ 400/7-40-38-5.5 | 400 | 7 | ZST 65-250/300 40HP | XAD65-250/300 40HP | SD 65-250/300 38HP | SVP8-10/5.5HP | CDL(F)8-8/4HP |
| ZEDJ 400/8-50-58-5.5 | 400 | 8 | ZST 65-250/370 50HP | XAD65-250/370 50HP | SD 65-250/370 58HP | SVP8-10/5.5HP | CDL(P)8-10/5.5HP |
| ZEDJ 400/9-60-61-7.5 | 400 | 9 | ZST 65-315/450 60HP | XAD65-315/450 60HP | SD 65-315/450 61HP | SVP12-6/7.5HP | CDL(P)8-12/5.5HP |
| ZEDJ 500/7-40-38-5.5 | 500 | 6-7 | ZST 65-250/300 40HP | XAD65-250/300 40HP | SD 65-250/300 38HP | SVP12-4/5.5HP | CDL(P)12-8/7.5HP |
| ZEDJ 500/8-50-58-7.5 | 500 | 8 | ZST 65-250/370 50HP | XAD65-250/370 50HP | SD 65-250/37058HP | SVP12-6/7.5HP | CDL(P)12-8/7.5HP |
| ZEDJ 500/9-60-61-7.5 | 500 | 9 | ZST 65-315/450 60HP | XAD65-315/450 60HP | SD 65-315/450 61HP | SVP12-6/7.5HP | CDL(P)12-9/7.5HP |
| ZEDJ 500/11-75-75-7.5 | 500 | 10-11 | ZST 65-315/550 75HP | XAD65-315/550 75HP | SD 65-315/550 75HP | SVP12-6/7.5HP | CDL(P)12-12/10HP |
| ZEDJ 500/13-100-100-15 | 500 | 12-13 | ZST 65-315/750 100HP | XAD65-315/750 100HP | SD 65-315/750 100HP | - | CDL(F)12-14/15HP |
|
|
Q | H | Listrik | solar | Joki | ||
| Pilihan 1 | pilihan 2 | Pilihan 1 | pilihan 2 | ||||
| Terhubung erat | Layanan Pelanggan | Jenis kopling | Impeler plastik | Saya menggunakan kole SS304 | |||
| GPM | Ada |
|
|
|
|
|
|
| ZEDJ 500/14-125-125-15 | 500 | 14 | ZST 65-315/900 125HP | XAD65-315/900 125HP | SD 65-315/900 125HP | - | CDL(F)12-14/15HP |
| ZEDJ 750/7-60-61-10 | 750 | 6-7 | ZST 80-250/450 60HP | XAD80-250/450 60HP | SD 80-250/450 61HP | - | CDL(P)16-8/10HP |
| ZEDJ 750/8-75-75-10 | 750 | 8 | ZST 80-250/550 75HP | BATAS 80-250/550 75HP | SD80-250/550 75HP | - | CDL(P)16-8/10HP |
| ZEDJ 750/9-100-100-10 | 750 | 9 | - | BATAS 80-250/750 100HP | SD 80-250/750 100HP | - | CDL(P)16-8/10HP |
| ZEDJ 750/11-100-100-12 | 750 | 10-11 | ZST 80-315/750 100HP | XAD 80-315/750 100HP | SD 80-315/750 100HP | - | CDL(P)16-10/15HP |
| ZEDJ 50/13-125-125-15 | 750 | 12-13 | ZST 80-315/900 125HP | BATAS 80-315/900 125HP | SD 80-315/900 125HP | - | CDL(P)16-12/15HP |
| ZEDJ 50/14-150-150-15 | 750 | 14 | - | XAD 80-315/1100 150HP | SD 80-315/1100 150HP | - | CDL(F)16-14/20HP |
| ZEDJ 1000/8-100-100-10 | 1000 | 8 | ZST 100-250/750 100HP | BATAS 100-250/750 100HP | SD 100-250/750 100HP | - | CDL(P))20-8/15HP |
| ZEDJ 1000/9-125-125-12 | 1000 | 9 | ZST 100-250/900 125HP | BATAS 100-250/900 125HP | SD 100-250/900 125HP | - | CDL(P)20-10/15HP |
| ZEDJ 1000/11-150-150-12 | 1000 | 10-11 | ZST 100-315/1100 150HP | XAD100-315/1100 150HP | SD 100-315/1100 150HP | - | CDL(P)20-10/15HP |
| ZEDJ 1000/12-180-170-15 | 1000 | 12 | ZST 100-315/1320 180HP | XAD 100-315/1320 180HP | SD 100-315/1320 170HP | - | CDL(P)20-14/20HP |
| ZEDJ 1000/14-220-225-20 | 1000 | 13-14 | ZST 100-315/1600 220HP | XAD 100-315/1600 220HP | SD 100-315/1600 225HP | - | CDL(P)20-14/20HP |
| ZEDJ 1250/8-150-150-12 | 1250 | 8 | - | BATAS 125-250/1100 150HP | SD 125-250/1100 150HP | - | CDL(F)32-60/15HP |
| ZEDJ 1250/9-180-170-15 | 1250 | 9 | - | BATAS 125-315/1320 180HP | SD 125-315/1320 170HP | - | CDL(F)32-60/15HP |
| ZEDJ 1250/11-220-225-15 | 1250 | 10-11 | - | BATAS 125-315/1600 220HP | SD 125-315/1600 225HP | - | CDL(F)32-80/20HP |
| ZEDJ 1250/12-250-270-20 | 1250 | 12 | - | BATAS 125-315/1850 250HP | SD 125-315/1850 270HP | - | CDL(P) 32-80/20HP |
| ZEDJ 1250/13-270-270-25 | 1250 | 13 | - | XAD 125-315/2000 270HP | SD 125-315/2000 270HP | - | CDL(F)32-100/25HP |
| ZEDJ 1500/8-180-170-15 | 1500 | 8 | - | XAD 125-250H/1320 180HP | SD 125-250H/1320 170HP | - | CDL(P))32-80/20HP |
| ZEDJ 1500/9-180-170-20 | 1500 | 9 | - | BATAS 125-315/1320 180HP | SD 125-315/1320 170HP | - | CDL(F)32-80/20HP |
| ZEDJ 1500/10-220-225-20 | 1500 | 10 | - | BATAS 125-315/1600 220HP | SD 125-315/1600 225HP | - | CDL(F)32-80/20HP |
| ZEDJ 1500/12-250-270-25 | 1500 | 11-12 | - | BATAS 125-315/1850 250HP | SD 125-315/1850 270HP | - | CDL(P))32-100/25HP |
| ZEDJ 1500/13-270-270-25 | 1500 | 13 | - | XAD125-315/2000 270HP | SD 125-315/2000 270HP | - | CDL(F)32-100/25HP |
| ZEDJ 2000/8-220-225-25 | 2000 | 8 | - | BATAS 150-250/1600 220HP | SD 150-250/1600 225HP | - | CDL(F)45-50/25HP |
| ZEDJ 2000/9-270-270-25 | 2000 | 9 | - | XAD 150-250/2000 270HP | SD 150-250/2000 270HP | - | CDL(F)45-50/25HP |
| ZEDJ 2000/10-340-340-30 | 2000 | 10 | - | XAD 150-315/2500 340HP | SD 150-315/2500 340HP | - | CDL(F)45-60/30HP |
| ZEDJ 2000/13-430-410-40 | 2000 | 11-13 | - | BATAS 150-315/3150 430HP | SD 150-315/3150 410HP | - | CDL(F)45-70/40HP |
| ZEDJ 2500/8-220-225-30 | 2500 | 8 | - | BATAS 150-250/1600 220HP | SD 150-250/1600 225HP | - | CDL(F)64-40/30HP |
| ZEDJ 2500/9-270-270-40 | 2500 | 9 | - | XAD 150-250/2000 270HP | SD 150-250/2000 270HP | - | CDL(F)64-50/40HP |
| ZEDJ 2500/10-340-340-40 | 2500 | 10 | - | XAD150-315/2500 340HP | SD 150-315/2500 340HP | - | CDL(F)64-50/40HP |
| ZEDJ 2500/12-430-410-40 | 2500 | 11-12 | - | XAD150-315/3150 430HP | SD 150-315/3150 410HP | - | CDL(F)64-60-2/40HP |

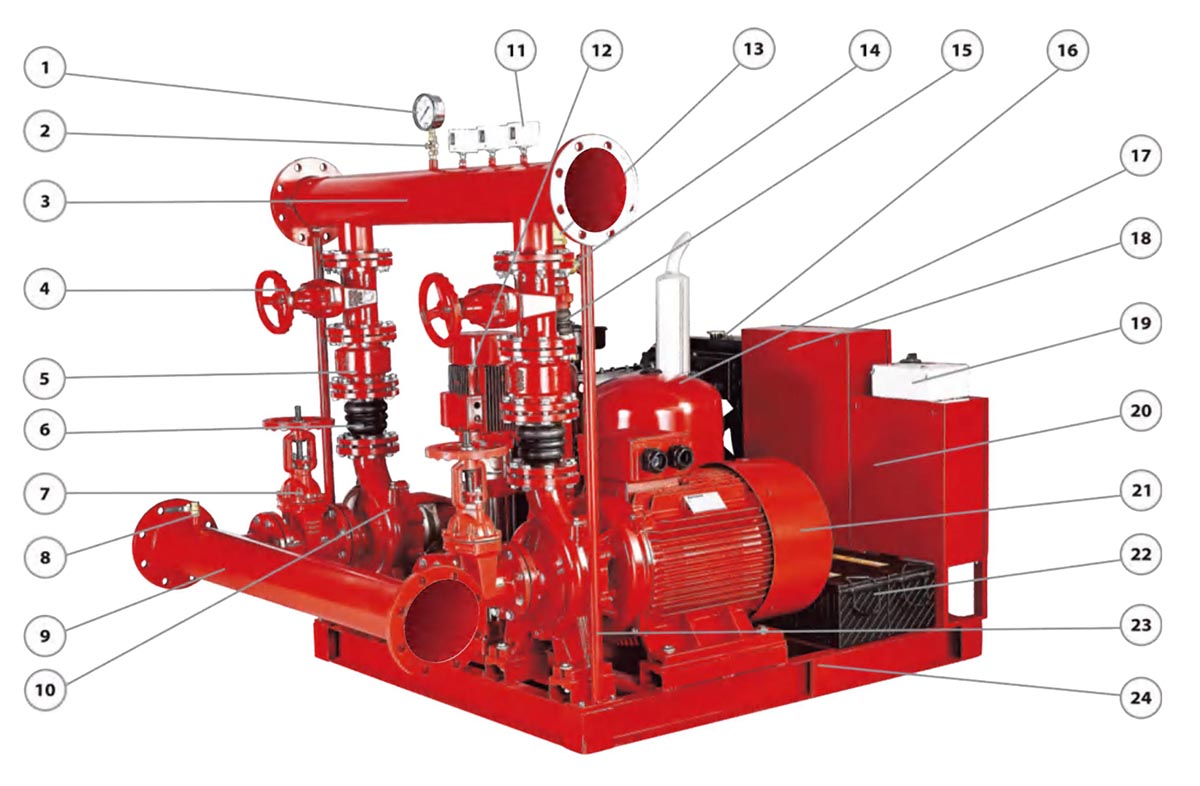

| TIDAK. | Keterangan | Bahan |
| 1 | Alat pengukur tekanan | Ada 0-16 |
| 2 | Katup pengaman | Kuningan |
| 3 | Pipa bertekanan | Baja karbon |
| 4 | Katup gerbang | Besi yang mudah ditempa |
| 5 | Periksa katup | Besi yang mudah ditempa |
| 6 | Flexible connection | Karet |
| 7 | katup OS&Y | Besi yang mudah ditempa |
| 8 | Katup pengaman | Kuningan |
| 9 | Garis hisap | Baja karbon |
| 10 | Pompa diesel | Backup power supply |
| 11 | Sakelar tekanan | Ada 0-16 |
| 12 | Pompa joki | Backup power supply |
| 13 | Katup periksa joki | Kuningan |
| 14 | Jockey shut-off valve | Kuningan |
| 15 | Flexible connection | Karet |
| 16 | Mesin diesel | Internal combustion |
| 17 | Tangki tekanan | Diafragma besi cor / EPDM |
| 18 | Electrical controller | Mulai langsung/Star-delta |
| 19 | Pengendali joki | Mulai langsung |
| 20 | Pengontrol diesel | Mulai langsung |
| 21 | Pompa listrik | Sumber utama |
| 22 | Aki | Utama/Cadangan |
| 23 | Batang pendukung | Besi cor |
| 24 | Basis | Besi cor |
| Laju aliran pompa | Diameter pipa minimum (nominal) | ||
| GPM | m³/jam | Pengisapan | Membubarkan |
| 25 | 6 | 1"-DN25 | 1"-DN25 |
| 50 | 11 | 11/2"-Dn40 | 11/4"-DN32 |
| 100 | 23 | 2"-DN50 | 2"-DN50 |
| 150 | 34 | 21/2"-DN65 | 21/2"-DN65 |
| 200 | 45 | 3"-DN80 | 3"-DN80 |
| 250 | 57 | 4"-DN100 | 3"-DN80 |
| 300 | 68 | 4"-DN100 | 4"-DN100 |
| 400 | 91 | 4"-DN100 | 4"-DN100 |
| 450 | 102 | 5"-DN125 | 5"-DN125 |
| 500 | 114 | 5"-DN125 | 5"-DN125 |
| Laju aliran pompa | Diameter pipa minimum (nominal) | ||
| GPM | m³/jam | Pengisapan | Membubarkan |
| 750 | 170 | 6"-DN150 | 6"-DN150 |
| 1000 | 227 | 8"-DN200 | 6"-DN150 |
| 1250 | 284 | 8"-DN200 | 8"-DN200 |
| 1500 | 341 | 8"-DN200 | 8"-DN200 |
| 2000 | 455 | 10"-DN250 | 10"-DN250 |
| 2500 | 568 | 10"-DN250 | 10"-DN250 |
| 3000 | 682 | 12"-DN300 | 12"-DN300 |
| 3500 | 795 | 12"-DN300 | 12"-DN300 |
| 4000 | 909 | 14"-DN350 | 12"-DN300 |
| 4500 | 1023 | 16"-DN400 | 14"-DN350 |
| 5000 | 1136 | 16"-DN400 | 14"-DN350 |
