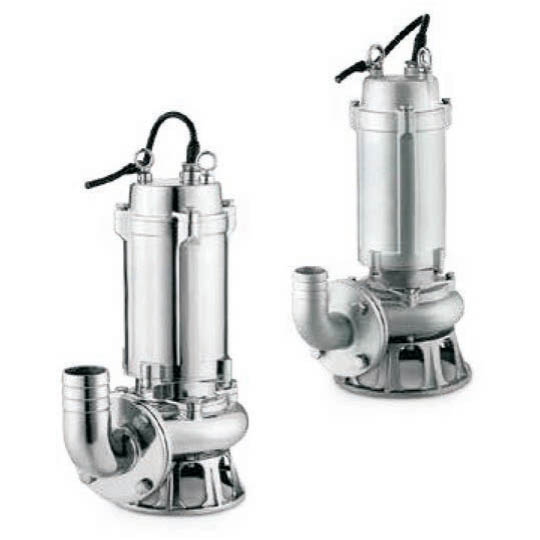

Bidang aplikasiPompa saluran pembuangan stainless steel WQ (S) untuk gedung, rumah sakit, perumahan, pekerjaan kota, konstruksi transportasi, pabrik, pendaratan, farmasi, minuman, air laut, air asin, air limbah berserat panjang dan sebagainya.
• Kedalaman perendaman maksimum: 5 m.
• Suhu cairan maksimum: +60°C.
• Nilai PH: 304 (4–10), 316 (4–13).
• Viskositas olahraga cairan: 7 × 10 ⁷ ~ 23 × 10 * m² / s.
• 2 - Mesin induksi Paul.
• fase tunggal / tiga fase, 220V / 380V, 50HZ.
• isolasi: tingkat F.
• Adanya perlindungan termal.
• Badan pompa: wadah pengecoran baja tahan karat.
• Dukungan listrik: saluran baja tahan karat.
• Roda daun : SS304#.
• Sumbu mesin : CS45#.
• Ini pompanya: SS304# atau SS316#.
• Segel mekanis: Viton.
| Model | Konsumsi nominalnya | Tekanan nominal | Kekuatan | Voltase | Ekspor | Kecepatan | |
| (m³/jam) | (M) | (kw) | (HP) | (V) | (mm) | (putaran/menit) | |
| 50WQ(D)10-10-0,75S | 10 | 10 | 0.75 | 1 | 380/220 | 50 | 2900 |
| 65WQ (D) 15-6-0,75 detik | 15 | 6 | 0.75 | 1 | 380/220 | 65 | 2900 |
| 50WO(D)15-10-1.1S | 15 | 10 | 1.1 | 1.5 | 380/220 | 50 | 2900 |
| 65WQ(D)20-6-1.1S | 20 | 6 | 1.1 | 1.5 | 380/220 | 65 | 2900 |
| 50WQ(D)15-15-1.5S | 15 | 15 | 1.5 | 2 | 380/220 | 50 | 2900 |
| 65WQ(D)25-7-1.5S | 25 | 7 | 1.5 | 2 | 380/220 | 65 | 2900 |
| 50WQ15-20-2.2S | 15 | 20 | 2.2 | 3 | 380 | 50 | 2900 |
| 65WQ25-15-2.2S | 25 | 15 | 2.2 | 3 | 380 | 65 | 2900 |
| 80WQ40-9-2.2S | 40 | 9 | 2.2 | 3 | 380 | 80 | 2900 |
| 100WQ50-7-2.25 | 50 | 7 | 2.2 | 3 | 380 | 100 | 2900 |
| 50WQ15-25-3S | 15 | 25 | 3 | 4 | 380 | 50 | 2900 |
| 65wq25-20-3s | 25 | 20 | 3 | 4 | 380 | 65 | 2900 |
| 80WQ40-15-3s | 40 | 15 | 3 | 4 | 380 | 80 | 2900 |
| 100WQ50-10-3S | 50 | 10 | 3 | 4 | 380 | 100 | 2900 |
| 50WQ15-32-4S | 15 | 32 | 4 | 5.5 | 380 | 50 | 2900 |
| 65WQ25-25-4S | 25 | 25 | 4 | 5.5 | 380 | 65 | 2900 |
| 80WQ40-18-4S | 40 | 18 | 4 | 5.5 | 380 | 80 | 2900 |
| 100WQ50-15-4S | 50 | 15 | 4 | 5.5 | 380 | 100 | 2900 |
| 50WQ20-32-5.5S | 20 | 32 | 5.5 | 7.5 | 380 | 50 | 2900 |
| 65WQ30-25-5.5S | 30 | 25 | 5.5 | 7.5 | 380 | 65 | 2900 |
| 80WQ50-18-5,5 detik | 50 | 18 | 5.5 | 7.5 | 380 | 80 | 2900 |
| 100WQ80-10-5.5S | 80 | 10 | 5.5 | 7.5 | 380 | 100 | 2900 |
| 50WQ100-7-5.5S | 100 | 7 | 5.5 | 7.5 | 380 | 50 | 2900 |
| 65WQ20-40-7.5S | 20 | 40 | 7.5 | 10 | 380 | 65 | 2900 |
| 80WQ30-32-7,5 detik | 30 | 32 | 7.5 | 10 | 380 | 80 | 2900 |
| 100WQ45-22-7.5S | 45 | 22 | 7.5 | 10 | 380 | 100 | 2900 |
| 150WQ80-15-7.5S | 80 | 15 | 7.5 | 10 | 380 | 150 | 2900 |
| 50WQ100-10-7.5S | 100 | 10 | 7.5 | 10 | 380 | 50 | 2900 |
| 65WQ140-7-7.5S | 140 | 7 | 7.5 | 10 | 380 | 65 | 2900 |
| 80WQ30-50-11S | 30 | 50 | 11 | 15 | 380 | 80 | 2900 |
| 100WQ45-42-11S | 45 | 42 | 11 | 15 | 380 | 100 | 2900 |
| 150WQ100-20-11S | 100 | 20 | 11 | 15 | 380 | 150 | 2900 |
| 50WQ180-11-11S | 180 | 11 | 11 | 15 | 380 | 50 | 2900 |
| 65WQ30-60-15S | 30 | 60 | 15 | 20 | 380 | 65 | 2900 |
| 80WQ45-52-15S | 45 | 52 | 15 | 20 | 380 | 80 | 2900 |
| 100WQ100-25-15S | 100 | 100 | 15 | 20 | 380 | 100 | 2900 |
| 150WQ180-15-15S | 180 | 180 | 15 | 20 | 380 | 150 | 2900 |
