Instalasi dan penggunaanPerlengkapan kuningan pada saluran terbuat dari tembaga, katup periksa bawaan, desain segel yang unik, dan pemilihan bahan karet pada katup periksa, sehingga produk disesuaikan dengan kondisi kerja yang lebih parah dan kondisi yang lebih ketat. Lima struktur yang dirancang khusus untuk sistem transformatif tekanan konstan juga akan sangat terintegrasi dengan sensor tekanan, tangki tekanan, manometer untuk membuat pemasangan lebih nyaman, dan sistem lebih bersih. Kepatuhan penuh terhadap standar tinggi dan persyaratan keselamatan lingkungan di negara-negara seperti Ell dan Amerika Serikat, menghilangkan ketakutan pengguna terhadap keselamatan dan kesehatan serta memiliki potensi unik dalam sistem pendukung kehidupan.

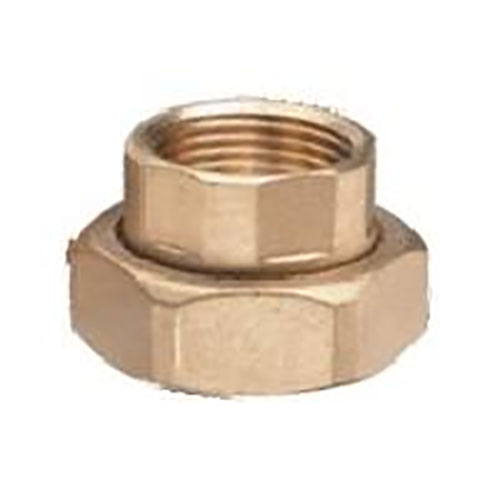

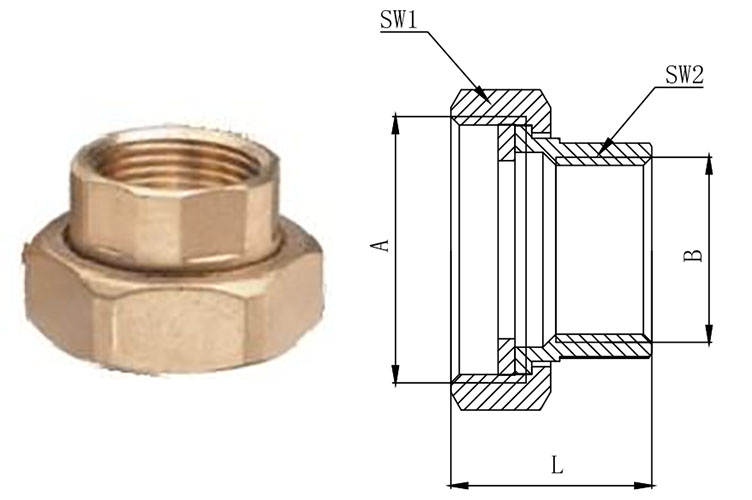

| Persatuan langsung (FF) | ||||||
| Model | A | B | sw1 | Beralih2 | L | Massa (gram) |
| F-C3011 | F 1-½" | F¾" | 52 | 31 | 32 | 155 |
| F 1-½" | F 1" | 52 | 37 | 36 | 165 | |
| F 2" | F 1-¼" | 63 | 46 | 30 | 241 | |

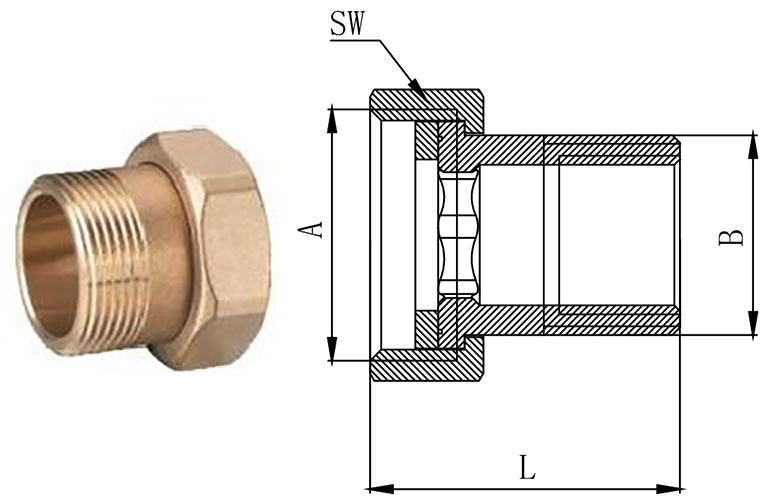

| Serikat Langsung (MF) | |||||
| Model | A | B | sw1 | L | Massa (gram) |
| F-C3012 | F 1" | M ½" | 36.5 | 34 | 85 |
| F 1" | M¾" | 36.5 | 41 | 105 | |
| F 1-½" | M 1" | 52 | 34 | 175 | |

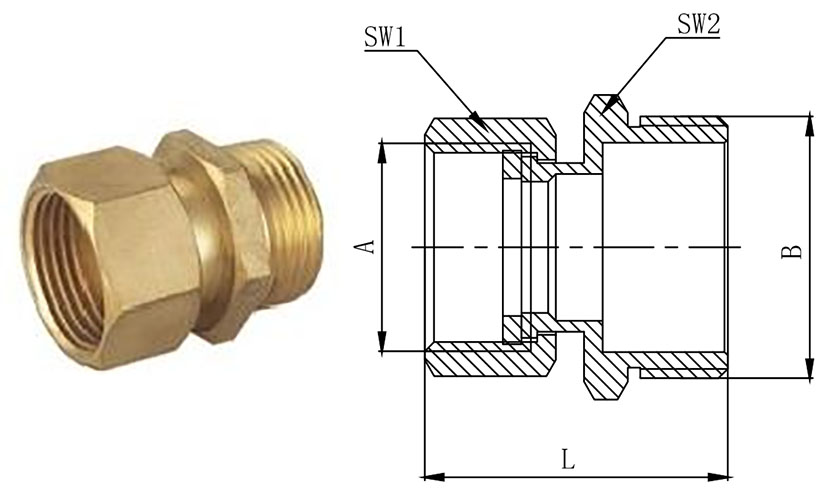

| Persatuan langsung (mm) | ||||||
| Model | A | B | sw1 | Beralih2 | L | Massa (gram) |
| F-C3013 | M 1" | M 1" | 36 | 37 | 48.5 | 150 |
| M 1" | M 1-¼" | 36 | 42 | 48.5 | 180 | |

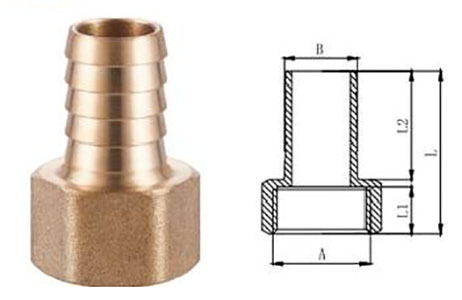

| Selang puting (f) | ||||||
| Model | A | B | C | L2 | L | Massa (gram) |
| F-C3014 | F½" | 8 | 12.5 | 23 | 38 | 35 |
| F½" | 9 | 12.5 | 23 | 38 | 36 | |
| F½" | 10 | 12.5 | 23 | 38 | 37 | |
| F½" | 12 | 12.5 | 23 | 38 | 38 | |
| F½" | 14 | 12.5 | 23 | 38 | 39 | |
| F½" | 16 | 12.5 | 23 | 38 | 42 | |
| F½" | 18 | 12.5 | 23 | 38 | 44 | |
| F½" | 20 | 12.5 | 23 | 38 | 48 | |
| F¾" | 14 | 14 | 23 | 39.5 | 57 | |
| F¾" | 16 | 14 | 23 | 39.5 | 58 | |
| F¾" | 18 | 14 | 23 | 39.5 | 59 | |
| F¾" | 20 | 14 | 23 | 39.5 | 71 | |
| F¾" | 25 | 14 | 23 | 39.5 | 78 | |
| F1" | 20 | 15 | 23 | 41 | 94 | |
| F1" | 25 | 15 | 23 | 41 | 94 | |
| F1 ¼ ” | 32 | 16 | 33 | 52 | 159 | |
| F1-½ ” | 40 | 15.5 | 44.5 | 63 | 213 | |
| F2" | 50 | 20 | 55.5 | 75.5 | 372 | |

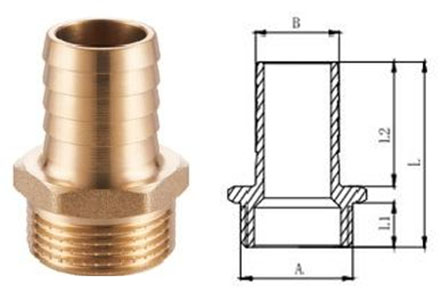

| Selang puting (m) | ||||||
| Model | A | B | L1 | L2 | L | Massa (gram) |
| F-C3015 | M¼" | 10 | 10 | 23 | 38 | 20 |
| M¼" | 12 | 10 | 23 | 38 | 22 | |
| M¼" | 14 | 10 | 23 | 38 | 23 | |
| M ½" | 8 | 11 | 23 | 40 | 28 | |
| M ½" | 9 | 11 | 23 | 40 | 32 | |
| M ½" | 10 | 11 | 23 | 40 | 32 | |
| M ½" | 12 | 11 | 23 | 40 | 32 | |
| M ½" | 14 | 11 | 23 | 40 | 34 | |
| M ½" | 16 | 11 | 23 | 40 | 37 | |
| M ½" | 18 | 11 | 23 | 40 | 40 | |
| M ½" | 20 | 11 | 23 | 40 | 43 | |
| M¾" | 14 | 11 | 23 | 40 | 48 | |
| M¾" | 16 | 11 | 23 | 40 | 49 | |
| M¾" | 18 | 11 | 23 | 40 | 54 | |
| M¾" | 20 | 11 | 23 | 40 | 55 | |
| M¾" | 25 | 11 | 23 | 40 | 61 | |
| M 1" | 20 | 15 | 23 | 45 | 89 | |
| M 1" | 25 | 15 | 23 | 45 | 90 | |
| M 1" | 32 | 15 | 23 | 45 | 112 | |
| M 1-¼" | 25 | 15 | 23 | 45 | 130 | |
| M 1-½" | 40 | 19 | 44.5 | 69.5 | 255 | |
| M 2" | 50 | 21 | 55.5 | 82.5 | 396 | |

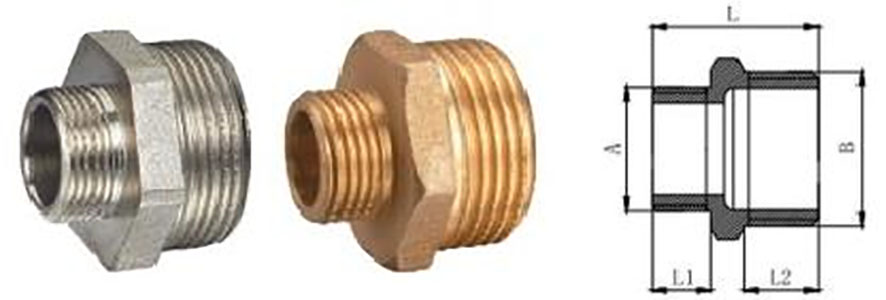

| Steker flensa |
|||||
| Model | A | B | L1 | L2 | L |
| F-C3016 | M¼" | M ⅜" | 7.5 | 9 | 21 |
| M¼" | M ½" | 7.5 | 11 | 23 | |
| M ⅜" | M ½" | 9 | 11 | 24.5 | |
| M ⅜" | M¾" | 9 | 12.5 | 26.5 | |
| M ½" | M¾" | 11.5 | 12.5 | 29 | |
| M ½" | M 1" | 11.5 | 14 | 30 | |
| M¾" | M 1" | 12 | 14 | 31 | |
| M ½" | M 1-¼" | 11.5 | 16 | 33 | |
| M¾" | M 1-¼" | 13 | 16 | 34.5 | |
| M 1" | M 1-¼" | 13.5 | 16 | 35 | |
| M ½" | M 1-½" | 11.5 | 16.5 | 33.5 | |
| M¾" | M 1-½" | 13 | 16.5 | 35 | |
| M 1" | M 1-½" | 13 | 16.5 | 35 | |
| M 1-¼" | M 1-½" | 16 | 16.5 | 38 | |
| M¾" | M 2" | 13 | 20 | 39 | |
| M 1" | M 2" | 14 | 20 | 40 | |
| M 1-¼" | M 2" | 16 | 20 | 42 | |
| M 1-½" | M 2" | 16.5 | 20 | 42.5 | |
| M 2" | M 2-½" | 20 | 25 | 54 | |
| M 2" | M 3" | 20 | 27 | 57 | |
| M 2-½" | M 3" | 27 | 25 | 62 | |

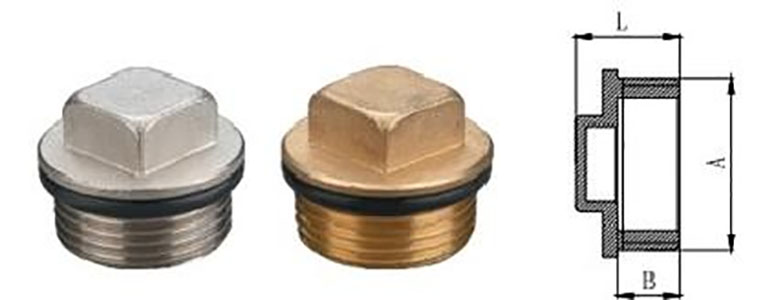

| Steker flensa |
||||
| Model | Ukuran | A | B | L |
| F-C3017 | ⅛" | M⅛" | 7 | 14 |
| ¼" | M¼" | 7 | 14 | |
| ⅜" | M ⅜" | 7 | 14 | |
| ½" | M ½" | 9 | 17 | |
| ¾" | M¾" | 11 | 19.5 | |
| 1" | M 1" | 11.5 | 21.5 | |
| 1-¼" | M1-¼" | 12.5 | 25.5 | |
| 1-½" | M1-½" | 13 | 28.5 | |
| 2" | M 2" | 17 | 34.5 | |
| 2-¼" | M2-¼ | 18.5 | 36 | |
| 2-½" | M2-½" | 20 | 39.5 | |
| 3" | M 3" | 24 | 46.5 | |
| 4" | M 4" | 28 | 55.5 | |

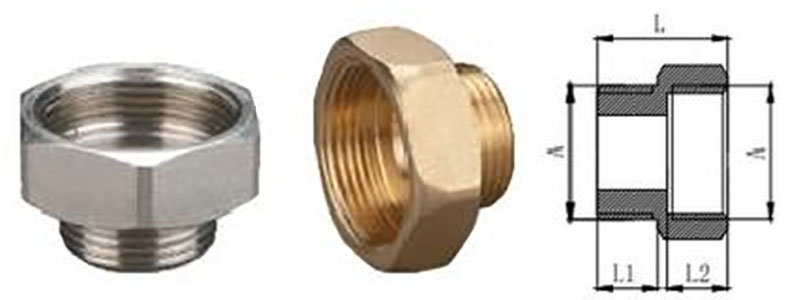

| Lurus sama (mf) | |||||
| Model | A | B | L1 | L2 | L |
| F-C3018 | ¼" | M¼" | 8 | 9 | 18.5 |
| ⅜" | M ⅜" | 8.5 | 9 | 18 | |
| ½" | M ½" | 10.5 | 11 | 22.5 | |
| ¾" | M¾" | 12 | 12.5 | 26.5 | |
| 1" | M 1" | 13 | 15 | 30.5 | |
| 1-¼" | M1-¼" | 15 | 16 | 33 | |
| 1-½" | M1-½" | 15.5 | 17 | 35 | |
| 2" | M 2" | 19.5 | 20 | 42.5 | |

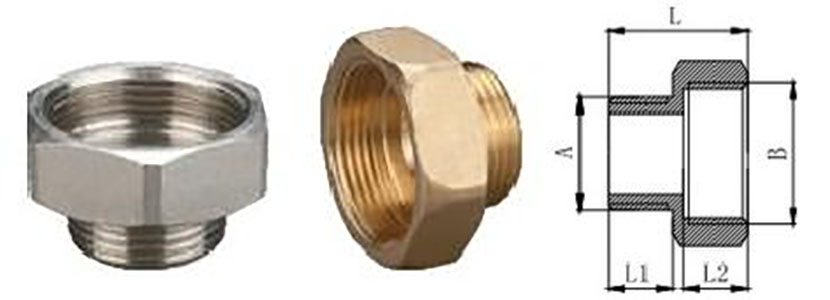

| Mengurangi lurus (MF) | |||||
| Model | A | B | L1 | L2 | L |
| F-C3019 | M¼" | M ⅜" | 8 | 10 | 20 |
| M¼" | M ½" | 8 | 11 | 21 | |
| M ⅜" | M¼" | 8.5 | 9 | 19 | |
| M ⅜" | M ½" | 8.5 | 11 | 21.5 | |
| M ½" | M ⅜" | 11 | 8.5 | 21.5 | |
| M ½" | M¾" | 11 | 12 | 25 | |
| M ½" | M 1" | 11 | 15 | 28 | |
| M ½" | M1-¼" | 11 | 16 | 30 | |
| M¾" | M ½" | 12 | 11 | 24 | |
| M¾" | M 1" | 12 | 14.5 | 29 | |
| M¾" | M1-¼" | 12 | 16 | 31 | |
| M 1" | M¾" | 13 | 12 | 27 | |
| M 1" | M1-¼" | 13 | 16 | 32 | |
| M 1" | M1-½" | 13 | 17 | 34 | |
| M 1" | M 2" | 13 | 19.5 | 38 | |
| M 1-¼" | M1-½" | 16 | 17 | 36 | |
| M 1-¼" | M 2" | 16 | 19.5 | 40 | |
| M 1-½" | M 2" | 17 | 19.5 | 40.5 | |
| M 2" | M1-½" | 19 | 17 | 34 | |
| M 2" | M2-½" | 19 | 25.5 | 19 | |

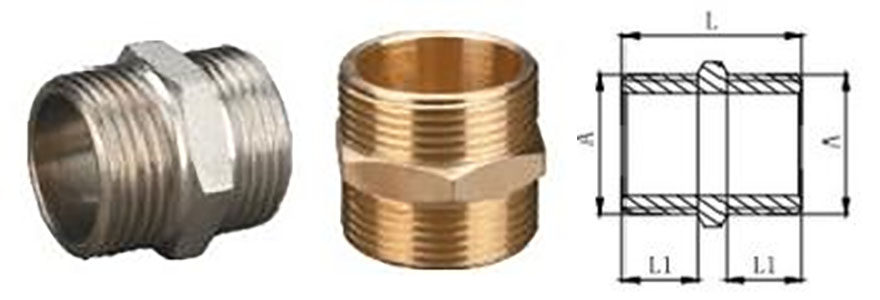

| Puting yang sama | ||||
| Model | Ukuran | A | L | L |
| F-C3020 | ⅛" | M⅛" | 8 | 19.5 |
| ¼" | M¼" | 8.5 | 21 | |
| ⅜" | M ⅜" | 9 | 22.5 | |
| ½" | M ½" | 10.5 | 25.5 | |
| ¾" | M¾" | 12 | 29 | |
| 1" | M 1" | 13 | 31.5 | |
| 1-¼" | M1-¼" | 15 | 35.5 | |
| 1-½" | M1-½" | 16.5 | 39 | |
| 2" | M 2" | 19 | 45 | |
| 2-½" | M2-½" | 25 | 58 | |
| 3" | M3 | 27 | 63 | |
| 4" | M4" | 35 | 81 | |
