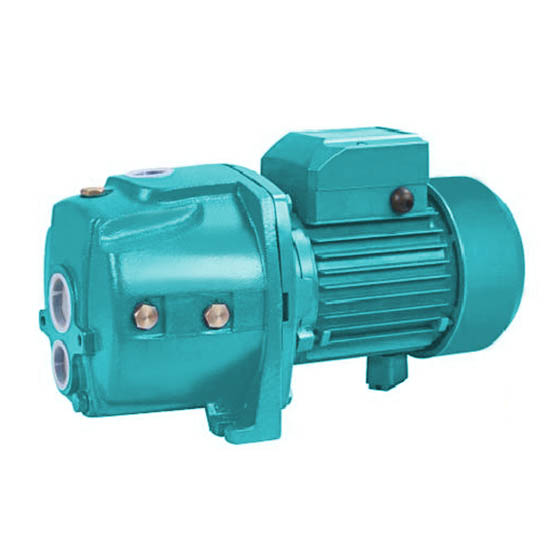

Pompa Jet JDW Untuk Sumur Dalam berkomitmen untuk menawarkan solusi khusus untuk memenuhi persyaratan spesifik Pompa Jet Sumur Dalam JDW.
Bahan• Rumah pompa: besi cor
• Braket pompa: besi cor
• Rumah motor: aluminium
• Impeller: kuningan
• Penyebar: Noryl
• Sumbu motor: baja karbon, AlS1304 SS (jika diperlukan)
• Segel mekanis: SIC / grafit
• Motor induksi bipolar (n = 2850 rpm)
• Isolasi kelas B
• Perlindungan IP44
• Pelayanan berkelanjutan Sl
• Pelindung termal satu fasa
• Fase tunggal 220 V / 50 Hz, 60 Hz (bila perlu)
• Tiga fase 380V / 50Hz, 60Hz (jika perlu)
| Pompa Injeksi Dalam JDW | ||||||||||||||||
| Model | Daya masukan | HS | Jumlah liter per jam | |||||||||||||
| 0 | 120 | 240 | 360 | 480 | 600 | 720 | 840 | 960 | 1080 | 1200 | ||||||
| KW | HP | |||||||||||||||
| Total head dinamis (m) | ||||||||||||||||
| JDW1A-2 | 0.75 | 1.0 | 15 | 50 | 46 | 42 | 39 | 35 | 32 | 30 | 27 | 24 | 21 | 19 | ||
| JDW2A-2 | 1.1 | 1.5 | 15 | 85 | 78 | 74 | 70 | 66 | 61 | 57 | 53 | 48 | 44 | 40 | ||
| JDW1A-2 | 0.75 | 1.0 | 20 | 38 | 33 | 29 | 26 | 23 | 21 | 18 | 16 | 14 | ||||
| JDW2A-2 | 1.1 | 1.5 | 20 | 71 | 63 | 58 | 84 | 50 | 46 | 43 | 39 | 36 | 34 | |||
| JDW1A-2 | 0.75 | 1.0 | 25 | 32 | 28 | 25 | 23 | 20 | 21 | 17 | 14 | |||||
| JDW2A-2 | 1.1 | 1.5 | 25 | 64 | 59 | 55 | 51 | 47 | 46 | 43 | 39 | 36 | ||||
| JDW1A-2 | 0.75 | 1.0 | 30 | 27 | 22 | 18 | 15 | |||||||||
| JDW2A-2 | 1.1 | 1.5 | 30 | 56 | 50 | 46 | 42 | |||||||||
| JDW1A-2 | 0.75 | 1.0 | 35 | 21 | 15 | 38 | 34 | |||||||||
| JDW2A-2 | 1.1 | 1.5 | 35 | 51 | 45 | 41 | 37 | 33 | ||||||||
| JDW2A-2 | 1.1 | 1.5 | 41 | 36 | 33 | |||||||||||
| JDW2A-2 | 1.1 | 1.5 | 36 | 30 | ||||||||||||
| Pompa Injeksi Dalam JDW | |||
| Model | JDW 1A-2 | JDW 2A-2 | |
| Daya (kW) | 0.75 | 1.1 | |
| Daya (HP) | 1.0 | 1.5 | |
| Masuk keluar | 1¼"×1"×1" | 1¼"×1"×1" | |
| Aliran maksimum (L/mnt) | 28 | 30 | |
| Kepala maksimum (m) | 80 | 100 | |
| Jangkauan maksimum (m) | 25 | 35 | |
| GW(kg) | 19 | 32.2 | |
| Ukuran pengisi (mm) | 423×288×245 | 525×235×295 | |
| Jumlah (PCS/20'TEU) | 1010 | 760 | |
| DNP | 2” | 2" | |
| DN1 | 1¼” | 1¼” | |
| DN2 | 1" | 1" | |
| DN3 | 1" | 1" | |
| DARI | 49 | 49 | |

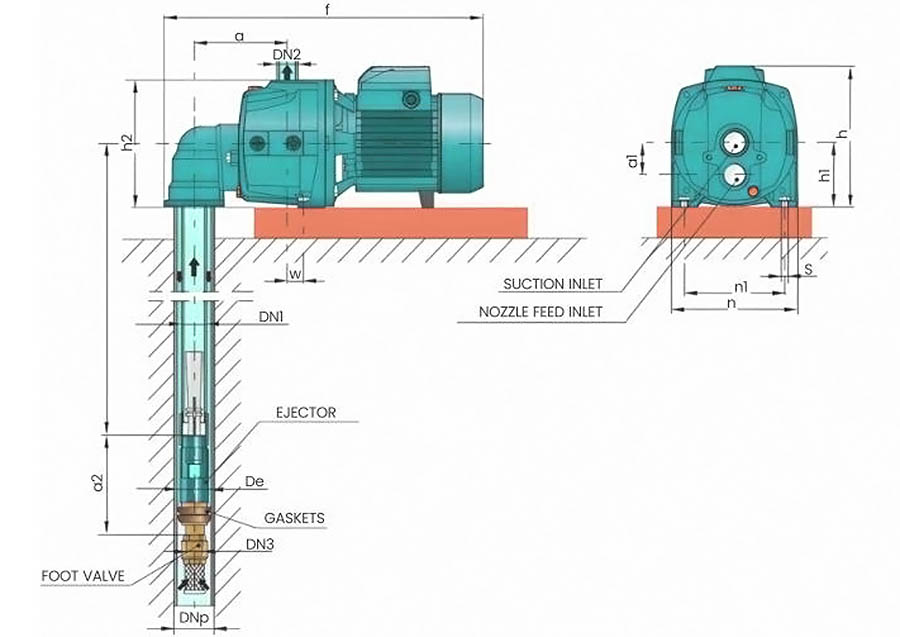

| Meditasi (mm) |
a | 75 | 75 |
| a1 | 46 | 46 | |
| a2 | 123 | 123 | |
| f | 374 | 374 | |
| h | 206 | 206 | |
| h1 | 97 | 97 | |
| i | 184 | 184 | |
| n | 190 | 190 | |
| n1 | 149 | 149 | |
| w | 24 | 24 | |
| s | 10 | 10 | |
