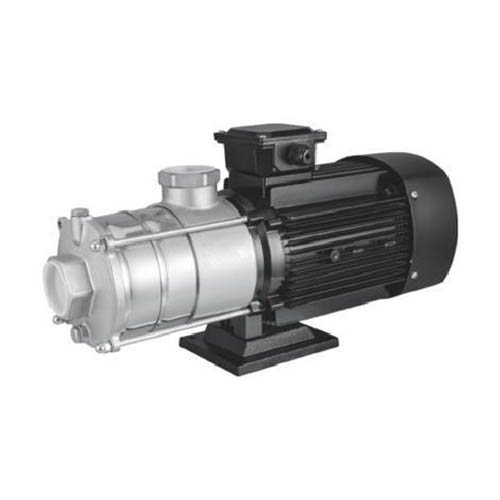

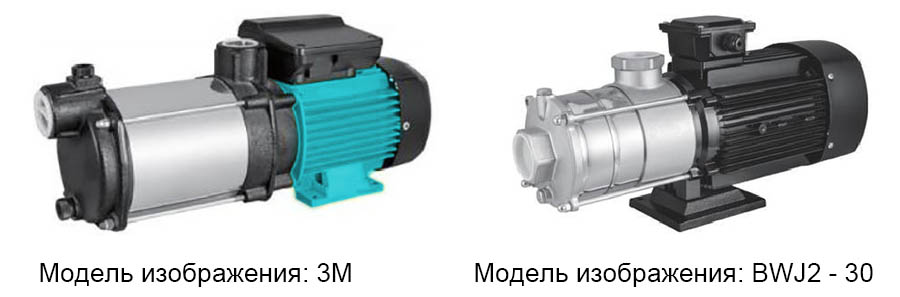

Merek ZEN Machinery adalah produsen terkemuka Pompa Sentrifugal Multistage Horisontal Stainless Steel BWJ di Cina.
PompaSuhu cairan maksimum: + 85°C
Hisap maksimum: 8 m
Tekanan kerja maksimum: dibatasi oleh tekanan kerja maksimum.
Badan pompa: besi cor/baja tahan karat
Impeller: bahan plastik rekayasa kekuatan tinggi, anti-korosi
motor listrik dengan belitan tembaga
Motor satu fase memiliki perlindungan termal bawaan.
Ini AISI 304
Kelas isolasi: B atau F
Kelas perlindungan: IPX4
Suhu lingkungan maksimum: + 40°C
Pendinginan: ventilasi eksternal
Ini digunakan untuk pasokan air domestik, perakitan peralatan, tekanan pipa, penyiraman taman, penyiraman sayuran di rumah kaca, peternakan ikan dan unggas, tambang industri, perusahaan dan gedung bertingkat untuk pasokan air dan saluran pembuangan, AC sentral, serta sistem pemanas dan sirkulasi terpusat.

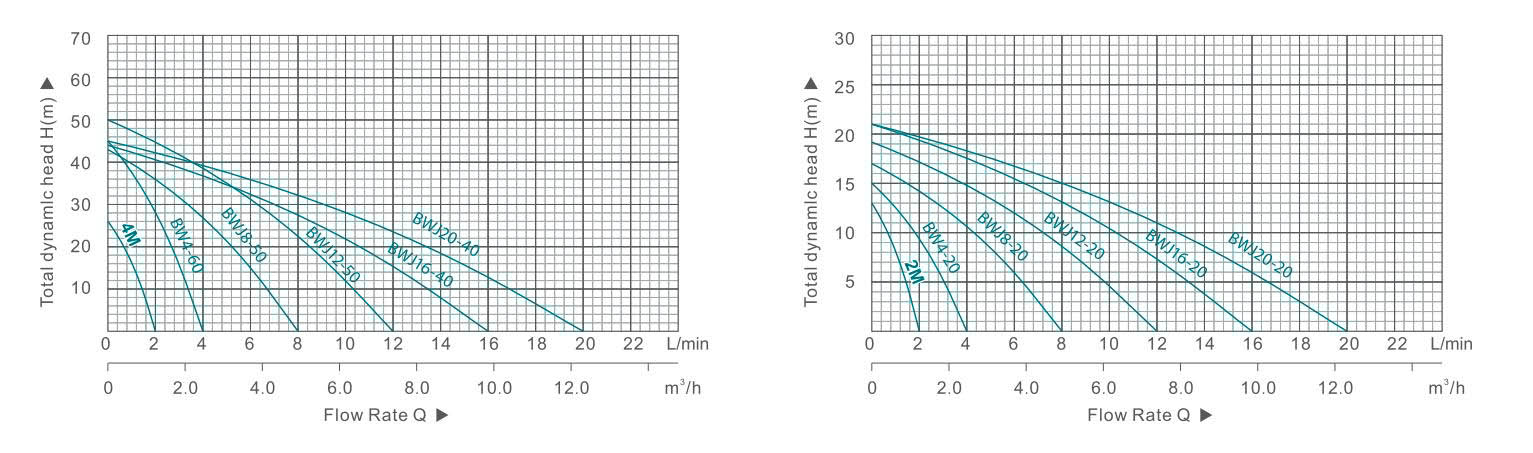

| Model | Kekuatan |
Aliran maksimum (Q/m³/jam) |
Kepala maksimal (M) |
Jangkauan maksimum (M) |
Masuk keluar (inci) |
GW (kg) |
Ukuran pengisi saya (mm) |
|
| KW | HP | |||||||
| 2M | 0.37 | 0.5 | 4.2 | 13 | 8 | 1"×1" | 8.7 | 385×140x187 |
| 3M | 0.55 | 0.75 | 4.2 | 19 | 8 | 1"×1" | 9.5 | 410x140x187 |
| 4M | 0.75 | 1 | 4.2 | 26 | 8 | 1"×1" | 10.3 | 435x140x187 |
| 5M | 1.1 | 1.5 | 4.2 | 49 | 8 | 1"×1" | 455x140x187 | |
| BWJ2-20 | 0.37 | 5 | 2 | 14 | 8 | 1"×1" | 15 | 325×165×210 |
| BWJ2-30 | 0.55 | 0.75 | 2 | 21 | 8 | 1"×1" | 15 | 345×165×210 |
| BWJ2-40 | 0.55 | 0.75 | 2 | 28 | 8 | 1"×1" | 16 | 365x165×210 |
| BWJ2-50 | 0.55 | 0.75 | 2 | 35 | 8 | 1"×1" | 17 | 385×165×210 |
| B7-60 | 0.75 | 1 | 2 | 42 | 8 | 1"×1" | 18.5 | 400x185x230 |
| BWJ4-20 | 0.55 | 0.75 | 4 | 15 | 8 | 1 1/4''×1" | 16 | 360x165×210 |
| BWJ4-30 | 0.55 | 0.75 | 4 | 22 | 8 | 1¼"×1" | 16.5 | 360x165×210 |
| BWJ4-40 | 0.75 | 1.0 | 4 | 30 | 8 | 1¼"×1" | 17 | 440x185x230 |
| BWJ4-50 | 1.1 | 1.5 | 4 | 38 | 8 | 1¼"×1" | 17 | 470x185x230 |
| BWJ4-60 | 1.1 | 1.5 | 4 | 45 | 8 | 1¼"×1" | 17.5 | 500x185x230 |
| BWJ8-10 | 0.75 | 1 | 8 | 8.5 | 8 | 1¼"×1½ | 20 | 410x185x230 |
| BWJ8-20 | 0.75 | 1.0 | 8 | 17 | 8 | 1¼"×1½ | 20.5 | 410x185x230 |
| BWJ8-30 | 1.1 | 1.5 | 8 | 25.5 | 8 | 1¼"×1½ | 25 | 440x185x230 |
| BWJ8-40 | 1.5 | 2.0 | 8 | 34 | 8 | 1¼"×1½ | 28 | 510x205x255 |
| BWJ8-50 | 2.2 | 3 | 8 | 42.5 | 8 | 1¼"×1½ | 30 | 510x205x255 |
| BWJ12-10 | 0.75 | 1.0 | 12 | 9.5 | 8 | 1½"×1½ | 20 | 410x185x230 |
| BWJ12-20 | 1.2 | 1.6 | 12 | 19.5 | 8 | 1½"×1½ | 21 | 410x185x230 |
| BWJ12-30 | 1.8 | 2.4 | 12 | 29.5 | 8 | 1½"×1½ | 25 | 480x220x255 |
| BWJ12-40 | 2.4 | 3.2 | 12 | 39.5 | 8 | 1½"×1½ | 29 | 510x220x255 |
| BWJ12-50 | 3.0 | 3.0 | 16 | 50 | 8 | 1½"×1½ | 34 | 600x240x280 |
| BWJ16-10 | 1.1 | 1.5 | 16 | 10 | 8 | 2"×2" | 18 | 450x240x280 |
| BWJ16-20 | 2.2 | 3.0 | 16 | 21 | 8 | 2"×2" | 27 | 490x185x230 |
| BWJ16-30 | 3 | 4 | 16 | 32 | 8 | 2"×2" | 33 | 590x240x280 |
| BWJ16-40 | 4.0 | 5.5 | 20 | 43 | 8 | 2"×2" | 41 | 655x255x320 |
| BWJ20-10 | 1.1 | 1.5 | 20 | 9.5 | 8 | 2"×2" | 18 | 450x240x280 |
| BWJ20-20 | 2.2 | 3.0 | 20 | 21 | 8 | 2"×2" | 27 | 490x185x230 |
| BWJ20-30 | 4 | 5.5 | 20 | 33 | 8 | 2"×2" | 41 | 610x255x320 |
| BWJ20-40 | 4.4 | 1.6 | 20 | 44.5 | 8 | 2"×2" | 44 | 655x255x320 |
